Gocator 5500 Series
LMI Technologies specializes in 3D scanning and inspection solutions, enhancing quality control, automation, and precision for manufacturing and industrial applications worldwide.

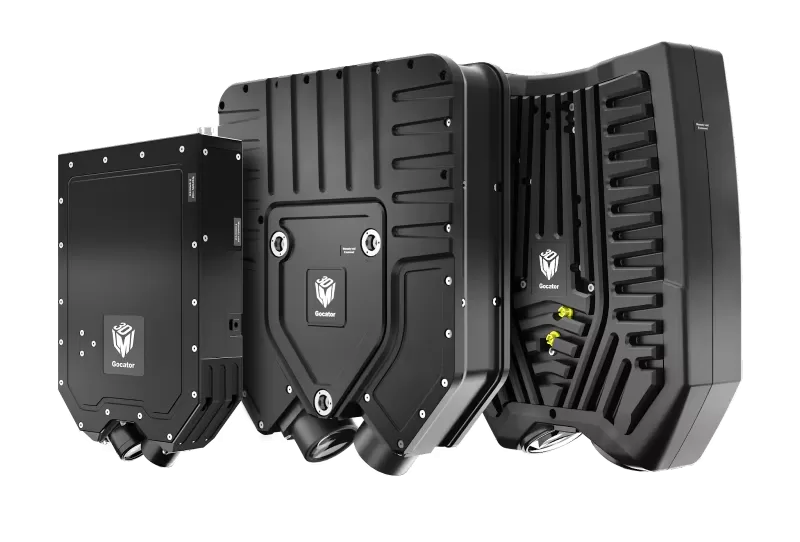

The Gocator 5500 Series introduces patented line confocal imaging (LCI) to LMI’s family of smart 3D sensors. These advanced sensors are purpose-built to deliver simultaneous 3D topography, 3D tomography, and 2D intensity data. In addition, the unique dual-axis optical design improves signal quality when working with challenging, multi-layer, or transparent materials. As a result, the 5500 Series sets a new benchmark for high-speed, high-precision inspection in Semiconductor, EV Battery, and Consumer Electronics manufacturing.
Features:
- 1792 data points per profile deliver precision 3D/2D acquisition
- Scan rates up to 40 kHz (with acceleration) support fast in-line inspection
- X profile data interval down to 2.5 µm provides high lateral resolution
- Z repeatability down to 0.07 µm and Z resolution down to 0.15 µm ensure consistent accuracy
- Model FOV options from 4.3 mm to 17.0 mm with measurement ranges up to 5.5 mm allow flexible integration
- Dual-axis LCI optics enhance signal quality on diverse material types
- Next-generation onboard measurement & inspection software includes a browser-based GUI, SDK, and industrial protocol support
When starting a new 3D vision project, In-Position Technologies engineers first review your key requirements to determine the best 3D sensor for the application. Next, we perform all necessary engineering calculations to ensure the vision system meets specifications and runs efficiently. After that, we recommend the proper cables, fixturing, and add-on accessories to make installation seamless. Finally, we confirm that every detail aligns with your performance goals before moving forward.
This includes:
• Determining which measurements are required
• Confirming field of view and scan precision are adequate
• Calculating the needed scan rate for desired throughput
• Verifying mounting compatibility, form factor, and integration details
• Specifying all necessary accessories
When ordering Gocator 5500 Series sensors as part of a full system, IP Tech engineers also conduct a complete review to ensure success. Specifically, we make sure that:
• All parts and accessories needed for a complete working solution are included
• All components are checked and verified to work together as a system
• The selected components deliver the performance required by your project specifications
